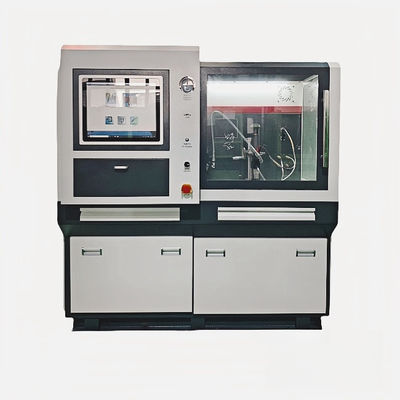

Common Rail HEUI Injector Test Bench with 4 Pin Real Time Display and 0-1450 Bar Rail Pressure
  • name
  • name
  • name
  • name
  • name
  • name

Common Rail HEUI Injector Test Bench with 4 Pin Real Time Display and 0-1450 Bar Rail Pressure

MOQ: 1
Price: 6400
Details Information
Product Description
Detail Information
Model NO.:
JZ-326B
Motor Power:
5.5 Kw
Power:
3-Phase 4-Wire 380V 50/60Hz
Rail Pressure:
0-1450 Bar
Rail Pressure Precision:
5 Bar
Filter Precision:
< 5 Um
Tank Volume:
20 L
Diesel Tank Volume:
20 L
Fuel Temperature:
38-42 °c
Net Weight:
500 Kg
Metering Way:
Flow Sensor
Dimensions:
1450*1050*1520 Mm
Speed Control:
Converter Control
Temperature Control:
Air-Cooled Heat Dissipation
Nozzle Sensor:
Imported Original Elliptical Type Flow Sensor
Highlight:

4 Pin HEUI Injector Test Bench

,

0-1450 Bar Rail Pressure Common Rail Injector Test Bench

,

5 Bar Rail Pressure Precision Diesel Fuel Injector Diagnostic Machine

Product Description
Common Rail Piezo Diesel Fuel 4 Pin Real Time Display Injector Diagnostic Coding Test Bench
Product Introduction
JZ-326B common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors. It can test thousands of injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The experimental data are complete.
Common Rail HEUI Injector Test Bench with 4 Pin Real Time Display and 0-1450 Bar Rail Pressure 0
Functions Description
  • Integrated flow sensor
  • Full-automatic Fully function
  • With electronic measuring system
  • Accurate data Multiple protection
  • Prepositioned precise filter for sensor
  • Real-time display the fuel delivery graph
  • Intelligent algorithm Automatic calibration
  • Automatically heating/cooling control for test oil
  • Bosch CP3 pump and high pressure oil rail with DRV
  • Bosch datas are from the orginal equipment of EPS708
  • Denso, Delphi, Siemens data are calibrated by the latest injectors
  • Data backup, software update and cloud upgradable functions
  • Function debugging can be realized under different speed conditions
  • Measurement of resistance and inductance of injector's solenoid valve
Common Rail HEUI Injector Test Bench with 4 Pin Real Time Display and 0-1450 Bar Rail Pressure 1
Our Advantage
Hardware advantage
  • Motor power is 5.5 KW
  • Air-cooled heat dissipation kit
  • Metering valve detect the fuel flow
  • Imported flow sensor from Germany
  • Equipped with Bosch genuine DRV
  • Equipped with Bosch genuine CP3 pump
  • Equipped with Bosch genuine common rail tube
  • Oil tank (including heating,refrigeration,liquid level detection,temperature detection)
  • Short-circuit protection, ground protection, over-pressure protection during the testing
  • Equipped frequency converter to achieve testing function under different speed conditions
  • Equipped precise filter before flow sensor, which can effectively keep the sensor clean and extend the flow sensor usage life
Software advantage
  • Timing injection responding sensing system of the injectors
  • Coding system, can generate different compensation codes and correction codes
  • Measurement system of resistance and inductance of injector's solenoid valve
  • More than 3000 test data used for different brands injectors and pumps calibrations
  • Data backup, system software and database upgrade free charge all the time by remote
  • Electronic measuring system, automatic testing the fuel quantity of all working conditions, and generate report after testing
  • Automatic test injectors under different working conditions, automatic analysis results, and generate report after testing
  • Intelligent algorithm is used to automatically calibrate the fuel quantity of the new injector, and generate reports after testing
Testing Details
Common Rail HEUI Injector Test Bench with 4 Pin Real Time Display and 0-1450 Bar Rail Pressure 2 Common Rail HEUI Injector Test Bench with 4 Pin Real Time Display and 0-1450 Bar Rail Pressure 3 Common Rail HEUI Injector Test Bench with 4 Pin Real Time Display and 0-1450 Bar Rail Pressure 4 Common Rail HEUI Injector Test Bench with 4 Pin Real Time Display and 0-1450 Bar Rail Pressure 5
Technical Parameters
Output 5.5 KW
Power 3-Phase 4-Wire 380V 50/60HZ
Rail Pressure 0~1450 Bar
Rail Pressure Precision ±5 Bar
Tank Volume 20L/20L
Fuel Temperature 40±2ºC
Filter Precision < 5μm
Gross Weight 500 kg
Packing Size 1450*1050*1520 mm
Speed Control Model Converter Control
Temperature Control System Air-Cooled Heat Dissipation
Nozzle Sensor Imported Original Elliptical Type Flow Sensor
Language English, Spanish, Russian,etc
Material Metal Plate
Painting Powder Painting, Durable
Color Green (can be customized)
Logo Jing Zheng Hong Ye (can be customized)
MOQ 1 Piece
Payment 40%Deposit, the rest paid before delivery
Warranty Time 12 months
Delivery time 30 days after prepaid
Shipping Packing Wooden Case
Related Products and Fixtures
Common Rail HEUI Injector Test Bench with 4 Pin Real Time Display and 0-1450 Bar Rail Pressure 6 Common Rail HEUI Injector Test Bench with 4 Pin Real Time Display and 0-1450 Bar Rail Pressure 7
Our Company
Common Rail HEUI Injector Test Bench with 4 Pin Real Time Display and 0-1450 Bar Rail Pressure 8
Exhibition
Common Rail HEUI Injector Test Bench with 4 Pin Real Time Display and 0-1450 Bar Rail Pressure 9
Why Choose Us
  • Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years. Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
  • Independent design and development team,and produce experience.
  • Almost all important parts of the equipment are come from top suppliers in the industry.
  • Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
  • Customized according to customer requirements, such as appearance, color, etc.
Contact Us
LEEN CHOW | Sales Manager
+86-18915397262
Wuxi JiaMiao Auto Technology Co., Ltd
Wuxi Chengshunda Automobile Technology Co., Ltd.
Address: No. 117 Xinzhuang Road, Zhutang Town Wuxi City, Jiangsu Province, China
Website: jm888888.en.made-in-china.com
