Jz-326b PRO High Pressure Common Rail 4 - 6 Injector Same Time Test Bench
| MOQ: | 1 |
| Price: | 10000 |
Detail Information
Certification
CE, ISO
Model NO.:
JZ-326B Pro
Testing Equipment Type:
Car Fault Detector
Update Method:
By Internet
Condition:
New
Standard:
Standard
Motor Power:
7.5 Kw
Power:
380V AC 3-Phase-4-Wire
Rail Pressure:
0-2700 Bar
Rail Pressure Precision:
5 Bar
Filter Precision:
< 5 Um
Diesel Tank Volume:
40 L
Fuel Temperature:
38-42 'c
Net Weight:
750 Kg
Metering Way:
Gear Flow Sensor
Transport Package:
Wooden Board
Specification:
1730*1250*1720 Mm
Trademark:
JZHY
Origin:
Wuxi City, Jiangsu, China
HS Code:
9031200090
Production Capacity:
1500 Pieces/Year
Highlight:
High Pressure Common Rail test bench
,Common Rail injector test bench
,4-6 injector simultaneous test bench
Product Description
Product Introduction
JZ-326B PRO common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4,Euro-5,Euro-6 injectors.
It can test thousands of injectors. The experimental data are complete.
Test piezoelectric injector
Test 4-pin,6-pin,Heavy Engine injector
Test the oil injection and return of 4 injectors simultaneously and generate the code at the same time
Remote software upgrade,data update
Generate piezo IMA ISA code
Generate 16/22/24/26/30/32 digital code
Generate C2i,C3i,C4i code
Generate IIC code
Generate XPI code
CP4 common rail pump

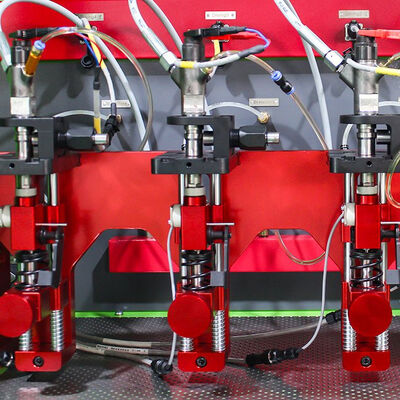

4 sets of pneumatic fixture,compatible with internal/external injectors
19 Inch industrial computer,touch screen and keyboard dual mode operation
JZ-326B PRO common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4,Euro-5,Euro-6 injectors.
It can test thousands of injectors. The experimental data are complete.
Standard Functions:
Test common rail injector
Test piezoelectric injector
Test 4-pin,6-pin,Heavy Engine injector
Test the oil injection and return of 4 injectors simultaneously and generate the code at the same time
Remote software upgrade,data update
Coding Function:
Generate 7/8/9//10 digital IQA code
Generate piezo IMA ISA code
Generate 16/22/24/26/30/32 digital code
Generate C2i,C3i,C4i code
Generate IIC code
Generate XPI code
Hardware Configuration:
8 flow meters
CP4 common rail pump
4 sets of pneumatic fixture,compatible with internal/external injectors
19 Inch industrial computer,touch screen and keyboard dual mode operation
Technical Parameters
| Technical Parameters | |||||||
| Model Number | JZ-326B PRO | ||||||
| Color | Green | ||||||
| Frequency | 50Hz / 60Hz | ||||||
| Speed | 0~2000 RPM | ||||||
| Speed Control Mode | Frequency Converter | ||||||
| Main Output | 7.5 KW | ||||||
| Oil Tank Cooling Output | 105 Watts | ||||||
| Power | 380V AC 3-Phase-4-Wire | ||||||
| Heating/Cooling | Air Conditioning (2P) | ||||||
| Diesel Tank Volume | 40L Filtration :3μm | ||||||
| Fuel Temperature | 40ºC ± 2ºC | ||||||
| Nozzel Flow Sensor | Gear Flow Sensor | ||||||
| Flow Metering Unit | 0.008~2L /min | ||||||
| Control Return Voltage | DC 12V DC 24V | ||||||
| ECU Internal Boost | 0-200 VDC(max) | ||||||
| Max CR Pressure | 2700 Bar | ||||||
| Rail Pressure Accuracy | ±5 Bar | ||||||
| Injection Frequency | 400-6000 n/M | ||||||
| Pulse Width | 100-3000 μs | ||||||
| Noise level | <85dB | ||||||
| Machine Dimension | 1640*1300*1550MM | ||||||
| Packing Dimension | 1730*1250*1720MM | ||||||
| Net Weight | 750KG | ||||||
| Gross Weight | 837KG | ||||||
