| MOQ: | 1 |
| Standard Packaging: | Wood Density Board |
| Delivery Period: | 7-10 Days |
| Payment Method: | T/T, L/C, Western Union |
| Supply Capacity: | 100sets per Month |

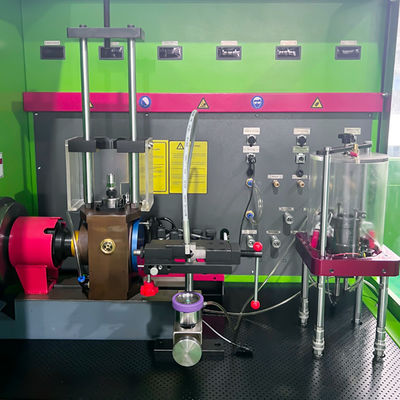

JZ-825 Integrated Injector CAT HEUI PIEZO SOLENOID 320D Pump Common Rail Test Bench
Standard Functions:
Assist Functions:
Optional Functions:
Hardware Configuration:
Generate Correction Code:
| Technical Parameters | |||||||
| Model Number | JZ-825 | ||||||
| Color | Green | ||||||
| Frequency | 50Hz / 60Hz | ||||||
| Motor Height | 125 MM | ||||||
| Main Output | 22 KW | ||||||
| Speed | 0～4000 RPM | ||||||
| Speed Control Mode | Frequency Converter | ||||||
| Diesel Motor Output | 5.5 KW | ||||||
| Engine Motor Output | 4 KW | ||||||
| Diesel Oil Supply Output | 0.75 KW | ||||||
| Engine Oil Supply Output | 0.55 KW | ||||||
| Oil Tank Cooling Output | 105 Watts | ||||||
| Power | 380V AC 3-Phase-4-Wire | ||||||
| Cooling Systerm | Air Conditioning (1.5 P) | ||||||
| Diesel Tank Volume | 40L Filtration Accuracy:3μm | ||||||
| Engine Oil Tank Volume | 20L Filtration Accuracy:5μm | ||||||
| Fuel Temperature | 40℃ ± 2℃ | ||||||
| Heating System | Air Conditioning | ||||||
| Nozzel / Pump Flow Sensor | Gear Flow Sensor | ||||||
| Flow Metering Unit | 0.008～2L /min | ||||||
| Control Return Voltage | DC 12V / DC 24V | ||||||
| Max Common Rail Pressure | 2700 Bar | ||||||
| Rail Pressure Testing Accuracy | ±5 Bar | ||||||
| Max Medium Common Rail Pressure | 250 Bar | ||||||
| Diesel Oil Supply Pressure | 0～2.5 Mpa | ||||||
| Oil Supply Pressure | 0～2.5 Mpa | ||||||
| Injection Frequency | 400-6000 n/M | ||||||
| Pulse Width | 100-3000 μs | ||||||
| Machine Dimension | 2310*1400*1830MM | ||||||
| Packing Dimension | 2510*1600*2030MM | ||||||
| Net Weight | 1200 KG | ||||||
| Gross Weight | 1440 KG | ||||||
