JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface
  • name
  • name
  • name
  • name
  • name

JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface

MOQ: 3
Price: 3500
Details Information
Product Description
Detail Information
Certification
CE, ISO
Model Number:
JZ12PS-D
Main Output:
5.5/7.5/11/15kw
Testing Cylinders:
6, 8, 12
Voltage:
380V, 220V, 415V
Oil Supply Pump:
10L/Min
Electrical Frequency:
50/60Hz
Oil Pressure:
High Pressure 0-40bar, Low Pressure 0-4bar
Oil Tank Volume:
60L
Speed:
0-4000rpm
Rotary Times:
0-9999
Drive Shaft Height:
125mm
Heating Power:
2kw
PC Power:
12/24V
Temperature Range:
30-65°C
Drive Coupling Diameter:
120mm
Net Weight:
715kg
Dimensions:
1600*1000*1450 Mm
Highlight:

6/8/12 Cylinder Testing Diesel Pump Test Bench

,

High Pressure 0-40bar Fuel Pump Test Machine

,

Digital Control Interface Injection Pump Tester

Product Description

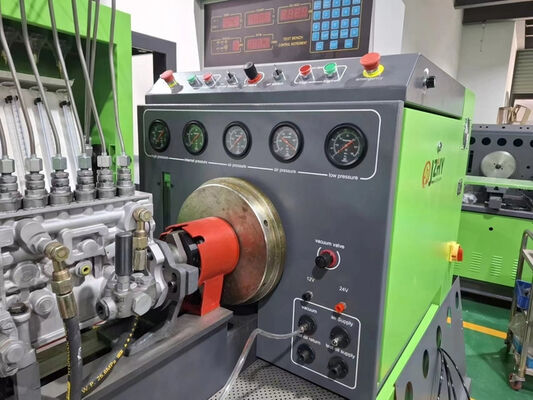

JZ12PS-D Mechanical Diesel Pump Test Bench Machine
This advanced mechanical diesel pump test bench represents the latest innovation in high-power, environmentally safe testing equipment. Featuring human-machine interface technology, it provides digital control of RPM, temperature, pressure, and diesel fuel pump technical parameters with synchronized printing capabilities.
The system offers intuitive operation with true human-machine dialogue functionality. Built with high-quality frequency conversion devices and cast iron super-size base beds, this series delivers exceptional stability, reliability, ultra-low noise operation, and comprehensive auto-protection features.
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface 0 JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface 1 JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface 2
Standard Testing Functions
  • Testing and debugging of oil supply amount and cylinder uniformity
  • Checking oil supply spacing and static state supply starting points
  • Performance testing and adjustment of mechanical speed controllers
  • Pump body sealing inspection
  • Distribution pump solenoid valve testing
  • Distribution pump return oil testing
  • Internal pressure measurement of distribution pumps
  • Vacuum capacity regulator inspection
  • Compensator pressure checking
  • Fuel supply pump testing
Key Characteristics
  • Advanced frequency conversion and industrial computer control technology
  • Compatible with components for measuring international high-pressure oil pumps
  • Debug speed curve analysis for injection oil pumps
  • Large inertia flywheel for steady drive and optimal balance
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface 3
Technical Specifications
Model Number JZ12PS-D
Color Green
Main Output (Option) 5.5/7.5/11/15kw
Testing Cylinders (Option) 6, 8, 12
Voltage 380V, 220V, 415V
Oil Supply Pump 10L/min
Electrical Supply Frequency 50/60HZ
Oily Supply Pressure High Pressure 0-40Bar, Low Pressure 0-4Bar
Protecting Level IP54
Oil Tank Volume 60L
Speed 0~4000 RPM
Rotatary Times 0-9999
Pressure Dial Low Pressure 0-6Bar, High Pressure 0-60Bar, Inside Pressure 0-16Bar
Positive and Negative Pressure -1-2.5Bar
Engine Oil Dial 0-10Bar
Drive Shaft Center High 125 mm
Heating Power 2 kw
PC Power 12/24V
Temperature 30-65°C
Drive Coupling Diameter 120 mm
Dimension 1600*1000*1450 mm
Metering Bottle 45ml*150ml*260mm
Net Weight 715 kg
Related Products and Fixtures
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface 4
Packing and Delivery
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface 5
Our Company
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface 6
Exhibition
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface 7 JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface 8
