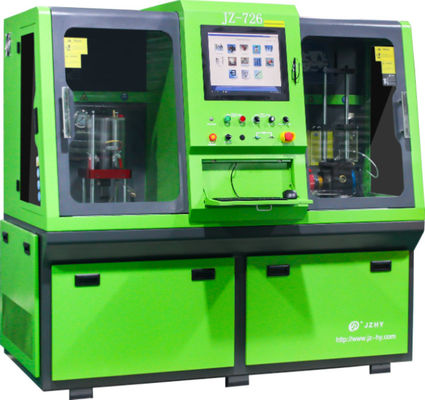

JZ-726 Electronic Unit Injector Electronic Unit Pump HEUI Diagnostic Test Bench
  • name
  • name
  • name
  • name
  • name
  • name

JZ-726 Electronic Unit Injector Electronic Unit Pump HEUI Diagnostic Test Bench

MOQ: 1 Set
Standard Packaging: Wood Density Board
Delivery Period: 7-10 Days
Payment Method: T/T, L/C, Western Union
Supply Capacity: 100 sets per Month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JZHY
Certification
CE / ISO
Model Number
JZ-726
Support:
OEM/ODM
Highlight:

HEUI injection pump test bench

,

HEUI common rail pump test bench

,

HEUI crdi pump testing machine

Product Description

JZ-726 Electronic Unit Injector Electronic Unit Pump HEUI Diagnostic Test Bench



Standard Functions:



  • Test EUI & EUP
  • Test HEUI injector



Optional Functions:



  • Test X15 Q60 HPI
  • Test common rail oil pump
  • Fuel tank oil level lower limit alarm
  • Test oil automatic
  • Heating / cooling control
  • Real-time display
  • Injection / returen curve







Technical Parameters
   Model Number    JZ-726
   Color    Green
   Frequency    50Hz / 60Hz
   Main Output    15 KW
   Speed    0～2700 RPM
   Speed Control Mode    Frequency Converter
   Oil Tank Cooling Output   105 Watts
   Power   380V AC 3-Phase-4-Wire
   Cooling Systerm   Air Conditioning
   Diesel Tank Volume   20L Filtration Accuracy:3μm
   Oil Tank Volume   20L Filtration Accuracy:3μm
   Fuel Temperature    40℃ ± 2℃
   Heating System    Air Conditioning
   Nozzel / Pump Flow Sensor    Gear Flow Sensor
   Flow Metering Unit    0.008～2L /min
   Control Return Voltage    DC 12V / DC 24V
   Max Common Rail Pressure    0-2700 Bar
   Rail Pressure Testing Accuracy    ±5 Bar
   Oil High Pressure    0-315 Bar
   Diesel Low Pressure    0-25 Bar (mannual)
   Pulse Width    100-3000 μs
   Machine Dimension    1900*1050*1830MM
   Packing Dimension    2000*1200*1950MM
   Net Weight    920KG
   Gross Weight    1030KG



JZ-726 Electronic Unit Injector Electronic Unit Pump HEUI Diagnostic Test Bench 0



JZ-726 Electronic Unit Injector Electronic Unit Pump HEUI Diagnostic Test Bench 1

JZ-726 Electronic Unit Injector Electronic Unit Pump HEUI Diagnostic Test Bench 2JZ-726 Electronic Unit Injector Electronic Unit Pump HEUI Diagnostic Test Bench 3

JZ-726 Electronic Unit Injector Electronic Unit Pump HEUI Diagnostic Test Bench 4

JZ-726 Electronic Unit Injector Electronic Unit Pump HEUI Diagnostic Test Bench 5

JZ-726 Electronic Unit Injector Electronic Unit Pump HEUI Diagnostic Test Bench 6JZ-726 Electronic Unit Injector Electronic Unit Pump HEUI Diagnostic Test Bench 7
