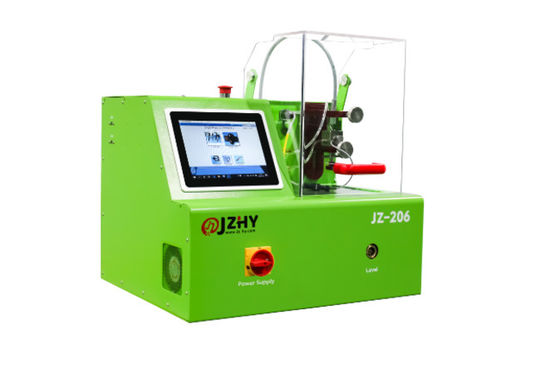

JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench

MOQ: 1 Set
Standard Packaging: Wood Density Board
Delivery Period: 7-10 Days
Payment Method: T/T, L/C, Western Union
Supply Capacity: 100sets per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JZHY
Certification
CE / ISO
Model Number
JZ-206
Support:
OEM/ODM
Minimum Order Quantity:
1 Set
Packaging Details:
Wood Density Board
Delivery Time:
7-10 Days
Payment Terms:
T/T, L/C, Western Union
Supply Ability:
100sets per Month
High Light:

JZ-206 Common Rail diesel injector test bench

,

4 Pin diesel injector test bench

,

Pizeo injector pump test bench

Product Description

JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench

Standard Functions:


  • Test common rail injectors
  • Test the piezo fuel injectors
  • Bosch IQA code generation
  • Fuel tank oil level lower limit alarm
  • Equipped multiple high-precision filters
  • Test oil automatic heating/cooling control
  • Real-time display injection/return curves


Optional Functions:


  • Test the 4-pin injector
  • Test Delphi smart injector
  • Denso injector QR code
  • Siemens VDO-IIC coding
  • Delphi C2i, C3i coding
  • Bosch piezo IMA, ISA coding



Technical Parameters
   Output   2.3 KW
   Speed   0 - 2500 RPM
   Speed Control Mode   Frequency Converter
   Power   Single Phase 220V 50/60HZ
   Cooling System   Air Cooling (2 Fan Radiators)
   Nozzle Sensor   Gear Flow Sensor
   Rail Pressure   0-2700 Bar
   Rail Pressure Precision   ±5 Bar
   Sensor Range   0.008-2L/min
   Oil Tank Volume   8L
   Fuel Temperature   40±2°C
   Filter Precision   < 5µm
   Noise level   < 85 dB
   ECU Internal Boost   0-200 VDC (Max)
   Machine Dimension   690*690*750 mm
   Packing Dimension   750*790*820 mm
   Net Weight   113kg
   Gross Weight   144KG

JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench 0JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench 1JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench 2JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench 3

JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench 4
JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench 5
JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench 6
JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench 7
JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench 8
