| MOQ: | 1 Set |
| Standard Packaging: | Wood Density Board |
| Delivery Period: | 7-10 Days |
| Payment Method: | T/T, L/C, Western Union |
| Supply Capacity: | 100 sets per Month |

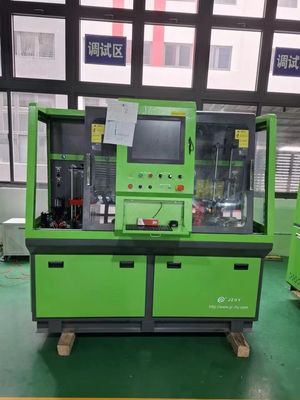

JZ-726 Electronic Unit Injector Electronic Unit Pump HEUI Diagnostic Test Bench
Standard Functions:
Optional Functions:
| Technical Parameters | |||||||
| Model Number | JZ-726 | ||||||
| Color | Green | ||||||
| Frequency | 50Hz / 60Hz | ||||||
| Main Output | 15 KW | ||||||
| Speed | 0～2700 RPM | ||||||
| Speed Control Mode | Frequency Converter | ||||||
| Oil Tank Cooling Output | 105 Watts | ||||||
| Power | 380V AC 3-Phase-4-Wire | ||||||
| Cooling Systerm | Air Conditioning | ||||||
| Diesel Tank Volume | 20L Filtration Accuracy:3μm | ||||||
| Oil Tank Volume | 20L Filtration Accuracy:3μm | ||||||
| Fuel Temperature | 40℃ ± 2℃ | ||||||
| Heating System | Air Conditioning | ||||||
| Nozzel / Pump Flow Sensor | Gear Flow Sensor | ||||||
| Flow Metering Unit | 0.008～2L /min | ||||||
| Control Return Voltage | DC 12V / DC 24V | ||||||
| Max Common Rail Pressure | 0-2700 Bar | ||||||
| Rail Pressure Testing Accuracy | ±5 Bar | ||||||
| Oil High Pressure | 0-315 Bar | ||||||
| Diesel Low Pressure | 0-25 Bar (mannual) | ||||||
| Pulse Width | 100-3000 μs | ||||||
| Machine Dimension | 1900*1050*1830MM | ||||||
| Packing Dimension | 2000*1200*1950MM | ||||||
| Net Weight | 920KG | ||||||
| Gross Weight | 1030KG | ||||||
Video
Video
|
|
| MOQ: | 1 Set |
| Standard Packaging: | Wood Density Board |
| Delivery Period: | 7-10 Days |
| Payment Method: | T/T, L/C, Western Union |
| Supply Capacity: | 100 sets per Month |
JZ-726 Electronic Unit Injector Electronic Unit Pump HEUI Diagnostic Test Bench
Standard Functions:
Optional Functions:
| Technical Parameters | |||||||
| Model Number | JZ-726 | ||||||
| Color | Green | ||||||
| Frequency | 50Hz / 60Hz | ||||||
| Main Output | 15 KW | ||||||
| Speed | 0～2700 RPM | ||||||
| Speed Control Mode | Frequency Converter | ||||||
| Oil Tank Cooling Output | 105 Watts | ||||||
| Power | 380V AC 3-Phase-4-Wire | ||||||
| Cooling Systerm | Air Conditioning | ||||||
| Diesel Tank Volume | 20L Filtration Accuracy:3μm | ||||||
| Oil Tank Volume | 20L Filtration Accuracy:3μm | ||||||
| Fuel Temperature | 40℃ ± 2℃ | ||||||
| Heating System | Air Conditioning | ||||||
| Nozzel / Pump Flow Sensor | Gear Flow Sensor | ||||||
| Flow Metering Unit | 0.008～2L /min | ||||||
| Control Return Voltage | DC 12V / DC 24V | ||||||
| Max Common Rail Pressure | 0-2700 Bar | ||||||
| Rail Pressure Testing Accuracy | ±5 Bar | ||||||
| Oil High Pressure | 0-315 Bar | ||||||
| Diesel Low Pressure | 0-25 Bar (mannual) | ||||||
| Pulse Width | 100-3000 μs | ||||||
| Machine Dimension | 1900*1050*1830MM | ||||||
| Packing Dimension | 2000*1200*1950MM | ||||||
| Net Weight | 920KG | ||||||
| Gross Weight | 1030KG | ||||||
