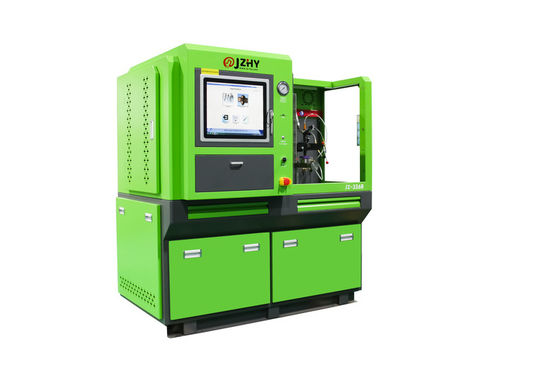

JZ-326B High Pressure Common Rail Pizeo Diesel 4 Pin Injector Diagnostic Test Bench

MOQ: 1 Set
Standard Packaging: Wood Density Board
Delivery Period: 7-10 Days
Payment Method: T/T, L/C, Western Union
Supply Capacity: 100sets per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JZHY
Certification
CE / ISO
Model Number
JZ-206
Support:
OEM/ODM
Highlight:

High Pressure common rail test bench

,

High Pressure diesel injector test bench

,

4 pin injector bench tester

Product Description

JZ-326B High Pressure Common Rail Pizeo Diesel 4 Pin Injector Diagnostic Test Bench

Standard Functions:

  • Test common rail injectors
  • Test the piezo fuel injectors
  • IQA code generation
  • Fuel tank oil level lower limit alarm
  • Equipped multiple high-precision filters
  • Test oil automatic heating/cooling control
  • Real-time display injection/return curves


Optional Functions:


  • Test the 4-pin injector
  • Test smart injector
  • injector QR code
  • VDO-IIC coding
  • C2i, C3i coding
  • piezo IMA, ISA coding



Technical Parameters
   Output    5.5 KW
   Speed    0 - 2700 RPM
   Speed Control Mode    Frequency Converter
   Power    380V AC 3-Phase-4-Wire
   Cooling System    Air Cooling (2 Fan Radiators)
   Nozzle Sensor    Gear Flow Sensor
   Rail Pressure    0-2700 Bar
   Rail Pressure Precision    ±5 Bar
   Sensor Range    0.008-2L/min
   Oil Tank Volume    20L Filtration Accuracy: <5µm
   Fuel Temperature    40±2°C
   Filter Precision    < 5µm
   Noise level    < 85 dB
   ECU Internal Boost    0-200 VDC (Max)
   Machine Dimension    1450*1050*1740 mm
   Packing Dimension    1550*1200*1740 mm
   Net Weight    386kg
   Gross Weight    416KG



JZ-326B High Pressure Common Rail Pizeo Diesel 4 Pin Injector Diagnostic Test Bench 0



JZ-326B High Pressure Common Rail Pizeo Diesel 4 Pin Injector Diagnostic Test Bench 1
JZ-326B High Pressure Common Rail Pizeo Diesel 4 Pin Injector Diagnostic Test Bench 2



Related Products



JZ-326B High Pressure Common Rail Pizeo Diesel 4 Pin Injector Diagnostic Test Bench 3



Exhibition Show



JZ-326B High Pressure Common Rail Pizeo Diesel 4 Pin Injector Diagnostic Test Bench 4
JZ-326B High Pressure Common Rail Pizeo Diesel 4 Pin Injector Diagnostic Test Bench 5
JZ-326B High Pressure Common Rail Pizeo Diesel 4 Pin Injector Diagnostic Test Bench 6
JZ-326B High Pressure Common Rail Pizeo Diesel 4 Pin Injector Diagnostic Test Bench 7

Tags:

test bench common rail,

injector pump test bench,

Diesel Injector Test Bench
