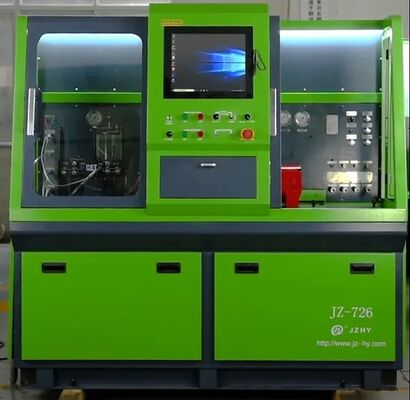

JZ-726 EUI EUP Test Bench with 6.5 Kw Motor Power 0-2600 Bar Rail Pressure and 20 L Diesel Tank Volume
  • name
  • name
  • name
  • name
  • name
  • name

JZ-726 EUI EUP Test Bench with 6.5 Kw Motor Power 0-2600 Bar Rail Pressure and 20 L Diesel Tank Volume

MOQ: 1
Price: 5500
Details Information
Product Description
Detail Information
Model NO.:
JZ-726
Motor Power:
6.5 Kw
Power:
3-Phase 4-Wire 380V 50/60Hz
Engine Oil Pressure:
0-315 Bar
Rail Pressure:
0-2600 Bar
Rail Pressure Precision:
5 Bar
Filter Precision:
< 5 Um
Tank Volume:
20 L
Diesel Tank Volume:
20 L
Fuel Temperature:
38-42 'c
Net Weight:
920kg
Machine Dimension:
1900*1050*1830 Mm
Packing Dimension:
2000*1200*1950 Mm
Gross Weight:
1030KG
Pulse Width:
100-3000 µs
Highlight:

6.5 Kw Motor Power EUI EUP Test Bench

,

0-2600 Bar Rail Pressure Diesel Test Bench

,

20 L Diesel Tank Volume Injector Test Bench

Product Description
JZ-726 EUI EUP HEUI All-In-One Diesel Test Bench
The JZ-726 EUI EUP HEUI All-In-One Machine features full automatic control for convenient repair and testing of Euro-3 and Euro-4 injectors. This versatile testing equipment can evaluate thousands of injectors while providing comprehensive experimental data.
JZ-726 EUI EUP Test Bench with 6.5 Kw Motor Power 0-2600 Bar Rail Pressure and 20 L Diesel Tank Volume 0
Standard Functions
  • Test unit injectors (EUI)
  • Test unit pumps (EUP)
  • Testing HEUI injectors
Optional Functions
  • Test X15, Q60HPI injectors
Assistant Functions
  • Fuel tank oil level lower limit alarm
  • Equipped with multiple high-precision filters
  • Test oil automatic heating/cooling control
  • Real-time display injection/return curves
Product Details
JZ-726 EUI EUP Test Bench with 6.5 Kw Motor Power 0-2600 Bar Rail Pressure and 20 L Diesel Tank Volume 1 JZ-726 EUI EUP Test Bench with 6.5 Kw Motor Power 0-2600 Bar Rail Pressure and 20 L Diesel Tank Volume 2 JZ-726 EUI EUP Test Bench with 6.5 Kw Motor Power 0-2600 Bar Rail Pressure and 20 L Diesel Tank Volume 3
Technical Parameters
Parameter Specification
Main Output 7.5KW
Speed Control Mode Frequency Converter
Power 3-Phase 4-Wire 380V 50/60HZ
Cooling System Fan Cooling
Heating System Air Conditioning
Nozzle Sensor Gear Flow Sensor
CR Pressure 0-2700 Bar
Rail Pressure Precision ±5 Bar
Oil High Pressure 0-350 Bar
Diesel Low Pressure 0-25 Bar (manual)
Diesel Tank Volume 20L Filtration Accuracy: 3 µm
Oil Tank Volume 20L Filtration Accuracy: 5 µm
Pulse Width 100-3000 µs
Fuel Temperature 40±2°C
Machine Dimension 1900*1050*1830 mm
Packing Dimension 2000*1200*1950 mm
Net Weight 920KG
Gross Weight 1030KG
Related Products and Fixtures
JZ-726 EUI EUP Test Bench with 6.5 Kw Motor Power 0-2600 Bar Rail Pressure and 20 L Diesel Tank Volume 4
Packing and Delivery
JZ-726 EUI EUP Test Bench with 6.5 Kw Motor Power 0-2600 Bar Rail Pressure and 20 L Diesel Tank Volume 5
Our Company
JZ-726 EUI EUP Test Bench with 6.5 Kw Motor Power 0-2600 Bar Rail Pressure and 20 L Diesel Tank Volume 6
Exhibition
JZ-726 EUI EUP Test Bench with 6.5 Kw Motor Power 0-2600 Bar Rail Pressure and 20 L Diesel Tank Volume 7 JZ-726 EUI EUP Test Bench with 6.5 Kw Motor Power 0-2600 Bar Rail Pressure and 20 L Diesel Tank Volume 8
