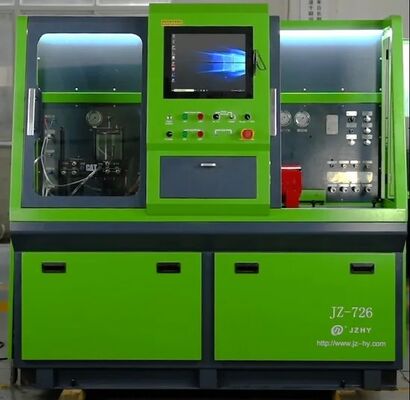

JZ-726 Multi-Function High-Capacity Automated Controls Common Rail Test Bench for EUI EUP HEUI Testing
  • name
  • name
  • name
  • name
  • name
  • name

JZ-726 Multi-Function High-Capacity Automated Controls Common Rail Test Bench for EUI EUP HEUI Testing

MOQ: 1
Price: 7600
Details Information
Product Description
Detail Information
Certification
CE, ISO
Model NO.:
JZ-726
Motor Power:
7.5 Kw
Power:
3-Phase 4-Wire 380V 50/60Hz
Speed Control:
Frequency Converter
Fuel Temperature:
38-42 ′c
Filter Precision:
< 5 Um
Rail Pressure:
0-2700 Bar
Diesel Tank Volume:
20 L
Oil Tank Volume:
20 L
Net Weight:
920 Kg
Oil High Pressure:
0-315 Bar
Pulse Width:
100-3000 Us
Diesel Low Pressure:
0-25 Bar
Dimensions:
2000*1200*1950 Mm
Cooling System:
Air Cooling
Highlight:

Multi-Function Common Rail Test Bench

,

High-Capacity EUI EUP Test Bench

,

Automated Controls HEUI Test Bench

Product Description
JZ-726 Diagnostic Multi-Function EUI EUP HEUI All-in-One Common Rail Test Bench
The JZ-726 is a versatile high-capacity test bench designed for comprehensive testing of fuel system components from Euro-3 to Euro-6 emission standards. With automated controls and extensive testing capabilities, it serves as an essential tool for repair and maintenance of modern diesel fuel systems. The system can test thousands of electronic unit injectors and electronic unit pumps while providing complete experimental data.
JZ-726 Multi-Function High-Capacity Automated Controls Common Rail Test Bench for EUI EUP HEUI Testing 0 JZ-726 Multi-Function High-Capacity Automated Controls Common Rail Test Bench for EUI EUP HEUI Testing 1
Testing Functions
Standard Functions
  • Test unit injectors (EUI)
  • Test unit pumps (EUP)
  • Testing HEUI injectors
  • Test smart injectors
Optional Functions
  • Test X15, Q60 single HPI
  • Test common rail oil pump
Hardware Configuration
  • Fuel tank oil level lower limit alarm
  • Real-time display injection/return curves
  • Test oil automatic heating/cooling control
  • Equipped multiple high-precision filters
Product Details
JZ-726 Multi-Function High-Capacity Automated Controls Common Rail Test Bench for EUI EUP HEUI Testing 2 JZ-726 Multi-Function High-Capacity Automated Controls Common Rail Test Bench for EUI EUP HEUI Testing 3 JZ-726 Multi-Function High-Capacity Automated Controls Common Rail Test Bench for EUI EUP HEUI Testing 4 JZ-726 Multi-Function High-Capacity Automated Controls Common Rail Test Bench for EUI EUP HEUI Testing 5 JZ-726 Multi-Function High-Capacity Automated Controls Common Rail Test Bench for EUI EUP HEUI Testing 6
Technical Parameters
Output 7.5 KW
Power 3-Phase 4-Wire 380V 50/60HZ
Rail Pressure 0~2700 Bar
Rail Pressure Precision ±5 Bar
Oil Tank Volume Diesel: 20L, Engine: 20L
Fuel Temperature 40±2ºC
Filter Precision < 5μm
Gross Weight 1030 kg
Packing Size 2000*1200*1950 mm
Speed Control Model Frequency Converter
Temperature Control System Air Conditioning Heat Dissipation
Nozzle Sensor Imported Original Elliptical Type Flow Sensor
Fuel Pump Sensor Imported Original Vane Type Flow Sensor
Language English, Spanish, Russian, etc
Material Metal Plate
Painting Powder Painting, Durable
Color Green (can be customized)
Logo Jing Zheng Hong Ye (can be customized)
MOQ 1 Piece
Payment 40% Deposit, the rest paid before shipment
Warranty Time 12 months
Delivery time 30 days after prepaid
Shipping Packing Wooden Case
Testing Scope
JZ-726 Multi-Function High-Capacity Automated Controls Common Rail Test Bench for EUI EUP HEUI Testing 7
Why Choose Us
  • 20 years of diesel fuel engine system service experience with our own 1200 square meter maintenance center
  • Independent design and development team with extensive production experience
  • Critical components sourced from top industry suppliers including DRV, B-osch common rail tubes, and CP3 pumps
  • Strict quality control with comprehensive pre-sale and after-sale service including free remote assistance
  • Customization options available for appearance, color, and other specifications
