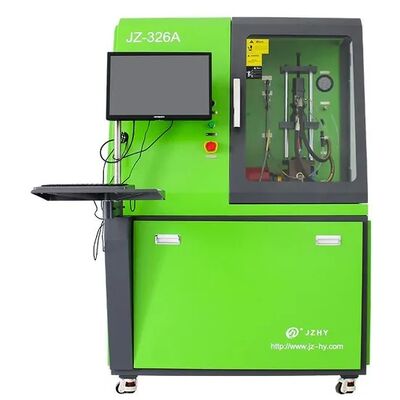

High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing
  • name
  • name
  • name
  • name
  • name
  • name

High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing

MOQ: 1
Price: 6400
Details Information
Product Description
Detail Information
Model NO.:
JZ-326A
Motor Power:
7.5 Kw
Power Supply:
3-Phase 4-Wire 380V 50/60Hz
Rail Pressure Precision:
5 Bar
Filter Precision:
< 5 Um
Diesel Tank Volume:
40 L
Fuel Temperature:
38-42 'c
Net Weight:
500kg
Metering Way:
Flow Sensor
Machine Dimension:
1280*990*1700 Mm
Packing Dimension:
1580*1100*1900 Mm
Speed Range:
0 -4000 RPM
Rail Pressure:
0-2700 Bar
Nozzle Sensor:
Gear Flow Sensor : 2 Pcs
Gross Weight:
530KG
Highlight:

High Precision EUI EUP Test Bench

,

7.5 Kw Motor Power Injector Pump Test Bench

,

40L Diesel Tank Volume Diesel Test Bench

Product Description
High Precision EUI EUP Injector Pump X15 Q60 HPI Test Bench
Product Introduction

The JZ-326A EUI EUP test bench features fully automatic control, providing convenient repair and testing capabilities for Euro-3 and Euro-4 injectors. This advanced system can test thousands of injectors while delivering comprehensive experimental data.

High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing 0
Standard Functions
  • Test unit injectors (EUI)
  • Test unit pumps (EUP)
Optional Functions
  • Test X15, Q60 HPI systems
Test Range

Comprehensive testing capabilities for unit injectors and unit pumps

Product Details
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing 1 High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing 2 High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing 3 High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing 4 High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing 5
Technical Parameters
Model Number 326A
Output 7.5KW
Speed 0 - 4000 RPM
Power 3-Phase 4-Wire 380V 50/60HZ
Nozzle Sensor Gear Flow Sensor: 2 pcs
Rail Pressure 0-2700 Bar
Diesel Tank Volume 40L Filtration Accuracy: 3 µm
Fuel Temperature 40±2°C
Machine Dimension 1280*990*1700 mm
Packing Dimension 1580*1100*1900 mm
Net Weight 500KG
Gross Weight 530KG
Related Products and Fixtures
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing 6
Packing and Delivery
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing 7
Our Company
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing 8
Exhibition
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing 9 High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing 10
Contact Us
Leen | Sales Manager
Wuxi Chengshunda Automobile Technology Co., Ltd.

Address: Building 8, Tianxi Jiangyin Zhizao Garden, No. 117 Xinzhuang Road, Zhutang Town, Jiangyin City, Wuxi City, Jiangsu Province China

Website: jm888888.en.made-in-china.com

Tags:

Injector Testing Machine,

Common Rail Instruments,

Car Diagnostic Tool Test Bench
