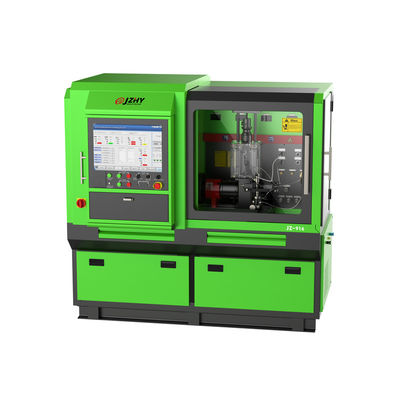

JZ-916 Integrated Piezo Pump Nozzle High Pressure Common Rail 4 Pin Plunger Injector Machine Test Bench

MOQ: 1
Standard Packaging: Wood Density Board
Delivery Period: 7-10 Days
Payment Method: T/T, L/C, Western Union
Supply Capacity: 100sets per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JZHY
Certification
CE/ISO
Model Number
JZ-916
Support:
OEM/ODM
Minimum Order Quantity:
1
Packaging Details:
Wood Density Board
Delivery Time:
7-10 Days
Payment Terms:
T/T, L/C, Western Union
Supply Ability:
100sets per Month
High Light:

JZ-916 common rail injector test bench

,

High Pressure common rail injector test bench

,

HPI Common Rail Test Bench

Product Description

JZ-916 Integrated Piezo Pump Nozzle High Pressure Common Rail 4 Pin Plunger Injector Machine Test Bench

Standard Functions:

  • Test the piezo injector
  • CAT 320D pump
  • Test solenoid valve injector
  • Test single pump and pump nozzle
  • Test high pressure common rail pump

​

Assist Functions:


  • Flow sensor linear calibration
  • Oil nozzle opening pressure flow
  • Fuel tank oil level lower limit alarm
  • Electronic measuring system
  • High pressure filter clogging reminder

​

Optional Functions:


  • Test the 4-pin injector
  • Test X15,Q60 HPI
  • CAT 9.3 Denso HP5 HP6 HP7 pump
  • Test Cummins HPI actuators
  • Test Bosch 4-plunger common rail pump
  • Test DENSO 4-plunger common rail pump


Hardware Configuration:


  • Gear flow sensor 3 pcs
  • Dual DRV configuration
  • Common rail pipe with filter function
  • Injection drive and system voltage monitor





Technical Parameters
   Model Number    JZ-916
   Color    Green
   Frequency    50Hz / 60Hz
   Motor Height    125 MM
   Main Output    15 KW
   Speed    0～3500 RPM
   Speed Control Mode    Frequency Converter
   Diesel Motor Output    5.5 KW
   Diesel Oil Supply Output    0.75 KW
   Oil Tank Cooling Output    105 Watts
   Power    380V AC 3-Phase-4-Wire
   Cooling Systerm    Air Conditioning (1P)
   Diesel Tank Volume    40L Filtration Accuracy:3μm
   Fuel Temperature    40℃ ± 2℃
   Heating System    Air Conditioning
   Nozzel / Pump Flow Sensor    Gear Flow Sensor
   Flow Metering Unit    0.008～2L /min
   Control Return Voltage    DC 12V / DC 24V
   Max Common Rail Pressure    0-2700 Bar
   Rail Pressure Testing Accuracy    ±5 Bar
   Diesel Oil Supply Pressure    0～2.5 Mpa
   Injection Frequency    400-6000 n/M
   Pulse Width    100-3000 μs
   Machine Dimension    1900*1160*1750MM
   Packing Dimension    2000*1350*1850MM
   Net Weight    1132KG
   Gross Weight    1230KG

JZ-916 Integrated Piezo Pump Nozzle High Pressure Common Rail 4 Pin Plunger Injector Machine Test Bench 0
JZ-916 Integrated Piezo Pump Nozzle High Pressure Common Rail 4 Pin Plunger Injector Machine Test Bench 1JZ-916 Integrated Piezo Pump Nozzle High Pressure Common Rail 4 Pin Plunger Injector Machine Test Bench 2
JZ-916 Integrated Piezo Pump Nozzle High Pressure Common Rail 4 Pin Plunger Injector Machine Test Bench 3JZ-916 Integrated Piezo Pump Nozzle High Pressure Common Rail 4 Pin Plunger Injector Machine Test Bench 4JZ-916 Integrated Piezo Pump Nozzle High Pressure Common Rail 4 Pin Plunger Injector Machine Test Bench 5
JZ-916 Integrated Piezo Pump Nozzle High Pressure Common Rail 4 Pin Plunger Injector Machine Test Bench 6
JZ-916 Integrated Piezo Pump Nozzle High Pressure Common Rail 4 Pin Plunger Injector Machine Test Bench 7

Tags:

JZ-916 common rail injector test bench,

High Pressure common rail injector test bench,

HPI Common Rail Test Bench
