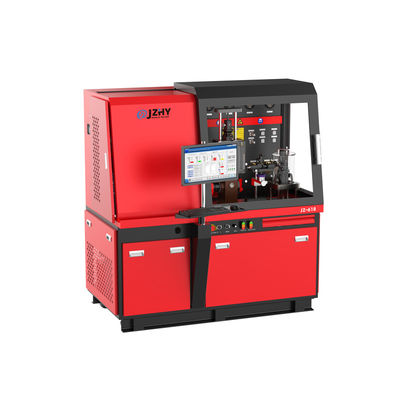

JZ-618 Injector Actuator Pump Common Rail 4 Pin Integrated Machine Test Bench

JZ-618 Injector Actuator Pump Common Rail 4 Pin Integrated Machine Test Bench

MOQ: 1
Standard Packaging: Wood Density Board
Delivery Period: 7-10 Days
Payment Method: T/T, L/C, Western Union
Supply Capacity: 100sets per Month
Detail Information
Place of Origin
China
Brand Name
JZHY
Certification
CE/ISQ
Model Number
JZ-618
Support:
OEM/ODM
Minimum Order Quantity:
1
Packaging Details:
Wood Density Board
Delivery Time:
7-10 Days
Payment Terms:
T/T, L/C, Western Union
Supply Ability:
100sets per Month
High Light:

JZ-618 common rail test bench

,

4 Pin common rail test bench

,

CAT common rail injector test bench

Product Description

JZ-618 Injector Actuator Pump Common Rail 4 Pin CAT Integrated Machine Test Bench



Standard Functions:



  • Test CAT actuator pump
  • Test piezo injector
  • Test solenoid valve injector
  • Test HEUI common rail injector
  • Test pump nozzle & unit pump
  • Test high-pressure common rail pump​

Assist Functions:



  • Test resistance & inductance
  • Flow sensor linear calibration
  • Oil nozzle opening pressure flow
  • Fuel tank oil level lower limit alarm
  • High pressure filter clogging reminder

Optional Functions:



  • Test Delphi smart injector
  • Test 4-pin injector
  • Testing X15, Q60 HPI
  • MTU
  • Denso HP5 HP6 HP7 pump
  • CAT 9.3
  • Testing Cummins HPI actuators
  • Bosch 4-plunger common rail pump

Hardware Configuration:



  • Gear flow sensor
  • Dual ORV configuration
  • 4 flow sensor metering units
  • Common rail pipe with filter function
  • Injection drive and system voltage monitor
  • Built-in oil actuated pump & high pressure common rail pump

Generate Correction Code:



  • Generate Bosch 6,7,8,9,10-digit IQA code
  • Generate Denso 16,24,30-digit QR code
  • Generate Delphi C2i,C3i correction code
  • Generate Bosch piezo IMA,ISA code
  • Generate Siemens VDO-IIC code
  • Generate Cummins correction code





Technical Parameters
   Model Number    JZ-618
   Color    Green/Red
   Frequency    50Hz / 60Hz
   Motor Height    125 MM
   Main Output    15 KW
   Speed    0~3500 RPM
   Speed Control Mode    Frequency Converter
   Diesel Motor Output    5.5 KW
   Engine Motor Output    4 KW
   Diesel Oil Supply Output    0.75 KW
   Oil Tank Cooling Output    105 Watts
   Power    380V AC 3-Phase-4-Wire
   Cooling Systerm    Air Conditioning (1P)
   Diesel Tank Volume    40L Filtration Accuracy:3μm
   Engine Oil Tank Volume    20L Filtration Accuracy:5μm
   Fuel Temperature    40℃ ± 2℃
   Heating System    Air Conditioning
   Nozzel / Pump Flow Sensor    Gear Flow Sensor
   Flow Metering Unit    0.008~2L /min
   Control Return Voltage    DC 12V / DC 24V
   Max Common Rail Pressure    0-2700 Bar
   Rail Pressure Testing Accuracy    ±5 Bar
   Max Medium Common Rail Pressure    250 Bar
   Diesel Oil Supply Pressure    0~2.5 Mpa
   Oil Supply Pressure    0~2.5 Mpa
   Injection Frequency    400-6000 n/M
   Pulse Width    100-3000 μs
   Machine Dimension    1880*1020*1750MM
   Packing Dimension    1980*1160*1930MM
   Net Weight    1020KG
   Gross Weight    1115KG

JZ-618 Injector Actuator Pump Common Rail 4 Pin Integrated Machine Test Bench 0JZ-618 Injector Actuator Pump Common Rail 4 Pin Integrated Machine Test Bench 1

JZ-618 Injector Actuator Pump Common Rail 4 Pin Integrated Machine Test Bench 2

JZ-618 Injector Actuator Pump Common Rail 4 Pin Integrated Machine Test Bench 3



JZ-618 Injector Actuator Pump Common Rail 4 Pin Integrated Machine Test Bench 4

JZ-618 Injector Actuator Pump Common Rail 4 Pin Integrated Machine Test Bench 5







JZ-618 Injector Actuator Pump Common Rail 4 Pin Integrated Machine Test Bench 6JZ-618 Injector Actuator Pump Common Rail 4 Pin Integrated Machine Test Bench 7

JZ-618 Injector Actuator Pump Common Rail 4 Pin Integrated Machine Test Bench 8

JZ-618 Injector Actuator Pump Common Rail 4 Pin Integrated Machine Test Bench 9JZ-618 Injector Actuator Pump Common Rail 4 Pin Integrated Machine Test Bench 10
