JZ-726 EUI EUP HEUI All In One Machine Pump Injector HPI Test Bench

MOQ: 1 Set
Standard Packaging: Wood Density Board
Delivery Period: 7-10 Days
Payment Method: T/T, L/C, Western Union
Supply Capacity: 100 sets per Month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JZHY
Certification
CE / ISO
Model Number
JZ-726
Document
726.pdf
Support:
OEM/ODM
Highlight:

HEUI diesel fuel injection pump test bench

,

EUP diesel fuel injection pump test bench

,

JZ-726 injection pump test bench

Product Description

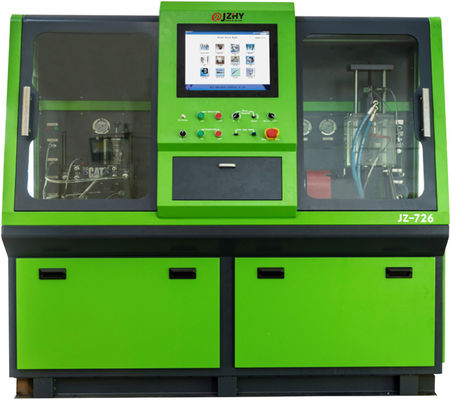

JZ-726 EUI EUP HEUI All-In-One Machine Pump Injector HPI Test Bench



Standard Functions:

  • Test unit injectiors (EUI)
  • Test unit pumps (EUP)
  • Testing HEUI injectors



Optional Functions:



  • Test X15, Q60 unit pump



Assistant Functions:



  • Fuel tank oil level lower limit alarm
  • Equipped multiple high-precision filters
  • Test oil automatic heating/cooling control
  • Real-time display injection/return curves



Technical Parameters
   Output    7.5KW
   Speed Control Mode    Frequency Converter
   Power    3-Phase 4-Wire 380V 50/60HZ
   Cooling System    Air Cooling (Air Conditioning Optional)
   Nozzle Sensor    Gear Flow Sensor
   Rail Pressure    0-2700 Bar
   Rail Pressure Precision    ±5 Bar
   Oil High Pressure    0-315 Bar
   Diesel Low Pressure    0-25 Bar (manual)
   Diesel Tank Volume    20L Filtration Accuracy: 3 µm
   Oil Tank Volume    20L Filtration Accuracy: 5 µm
   Pulse Width    100-3000 µs
   Fuel Temperature    40±2°C
   Machine Dimension    1900*1050*1830 mm
   Packing Dimension    2000*1200*1950 mm
   Net Weight     920KG
   Gross Weight    1030KG





JZ-726 EUI EUP HEUI All In One Machine Pump Injector HPI Test Bench 0

JZ-726 EUI EUP HEUI All In One Machine Pump Injector HPI Test Bench 1JZ-726 EUI EUP HEUI All In One Machine Pump Injector HPI Test Bench 2

JZ-726 EUI EUP HEUI All In One Machine Pump Injector HPI Test Bench 3



JZ-726 EUI EUP HEUI All In One Machine Pump Injector HPI Test Bench 4JZ-726 EUI EUP HEUI All In One Machine Pump Injector HPI Test Bench 5

JZ-726 EUI EUP HEUI All In One Machine Pump Injector HPI Test Bench 6

JZ-726 EUI EUP HEUI All In One Machine Pump Injector HPI Test Bench 7

JZ-726 EUI EUP HEUI All In One Machine Pump Injector HPI Test Bench 8

JZ-726 EUI EUP HEUI All In One Machine Pump Injector HPI Test Bench 9
